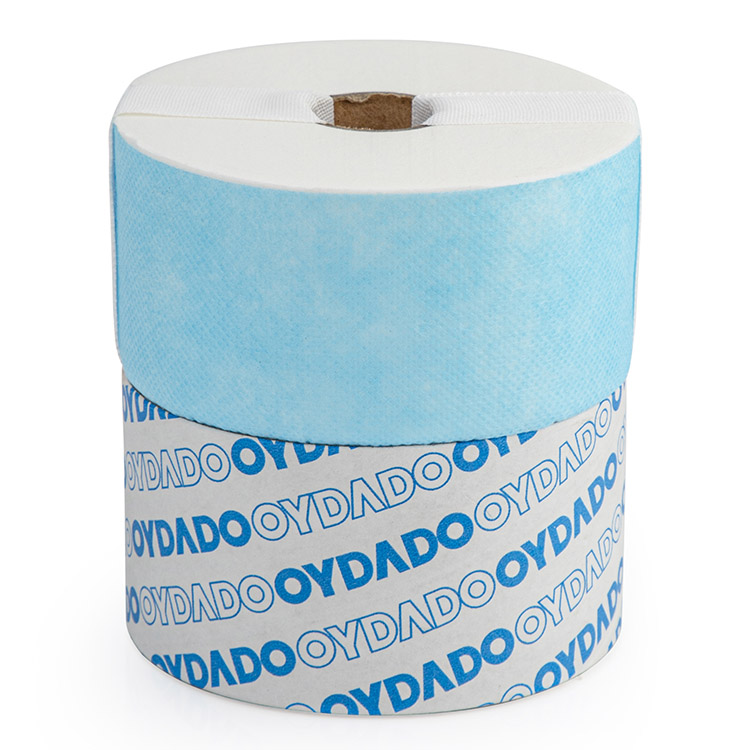

ME-32 Precised Filter Element

Advanced ME-32 Precised Filter Element Quotation. ME-32 precised filter element is processed by filter material made of wood pulp, cellulose and additives. Segmented rolling manufacturing process is adopted to press the filter material of the planar structure into a cylindrical filter element with different density gradients. The filter element has the following functions, such as absorbing pollutants by grades, adsorbing pollutants, and absorbing and locking moisture.

Model number: ME-32

Outer diameter (mm): Φ104

Inner diameter (mm): Φ25

Height(mm): 114

Maximum impurity absorption (approximately): 200 g

Maximum water absorption (approximately): 460 mL

Temperature range in operation: 0～80℃

Viscosity range of the used oil: 9～180cSt

Supporting bypass oil filter model: BU-32

a. High filtering accuracy, the oil cleanliness level after filtration is as high as NAS3

b. Large dirt holding capacity, with the three functions of adsorption, subsumption and water absorption at the same time

c. It can filter out moisture, oil oxides, sludge and micron solid particles

ME-32 precised filter element is suitable for precised filtration of hydraulic oil and other industrial oils with a viscosity ranging from 9 to 180cSt. It has excellent filtering effects for oils of different pollution levels.

•
