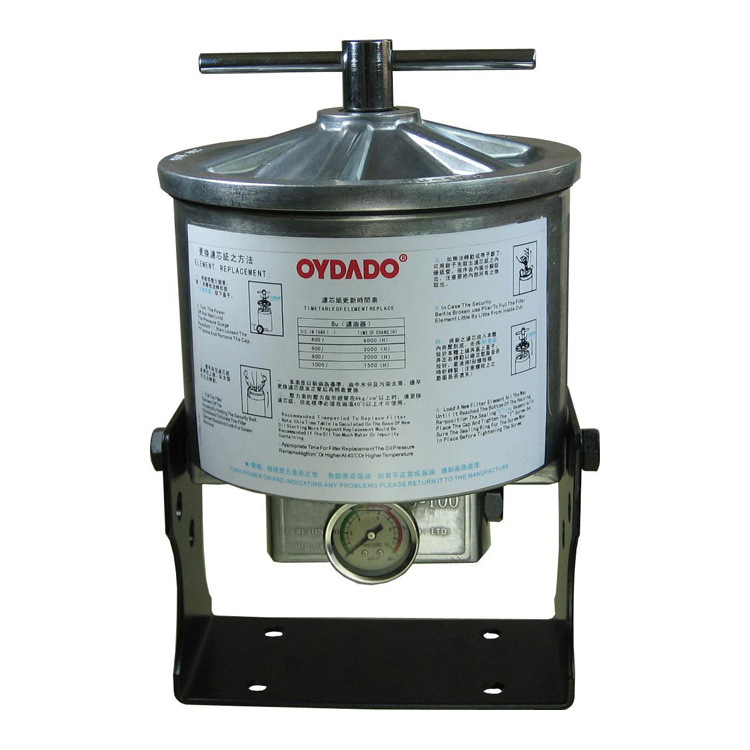

BU-100-114 Bypass Oil Filter
  • BU-100-114 Bypass Oil FilterBU-100-114 Bypass Oil Filter

BU-100-114 Bypass Oil Filter

Quality BU-100-114 Bypass Oil Filter Quotation, we have an annual sales volume of more than 30,000 units. The BU-100-114 bypass oil filter can filter micron-level pollutants with high filtering accuracy, large dirt holding capacity and low maintenance costs.

Send Inquiry

Product Description

1. Product Introduction of BU-100-114 Bypass Oil Filter

Quality BU-100-114 Bypass Oil Filter Quotation. The BU-100-114 bypass oil filter is used in combination with the hydraulic system, and uses the pressure of the hydraulic system to divert a certain amount of oil from the hydraulic oil circuit, and then performs bypass precised filtration through the oil filter. The BU-100-114 bypass oil filter and the hydraulic system are operated at the same time to remove the oil contaminants generated by the hydraulic system in real time, improve the oil cleanliness level, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and maintain the hydraulic system in good working condition. The precised filtration of oil in a larger tank can be achieved by connecting multiple BU-100-114 bypass oil filters in parallel.

2. Technical parameters of BU-100-114 Bypass Oil Filter

Product model: BU-100-114

Supporting filter model: ME-100-114

Flow rate: 3.0L/min

Filtering accuracy: μ level

The highest cleanliness grade: NAS5

Maximum water removal amount: about 0.96L

Maximum decontamination amount: about 1300g

Applicable pressure range: 0.6~21Mpa

Oil temperature range: 0~80℃

Oil viscosity range: 9~180cSt

Inlet and outlet diameter: RC1/4 (inlet);RC3/8 (outlet)

Weight (kg): 6.6

Dimensions (mm): 230x206x320

Applicable fuel tank capacity: ≤ 400L

BU-100-114 Bypass Oil Filter

3. Product features of BU-100-114 Bypass Oil Filter

The BU-100-114 bypass oil filter can filter out oil oxides, sludge, moisture and micron solid particles. If the filter element saturation alarm function is selected, it will make an alarm automatically. The built-in safety valve can avoid damage to the oil filter due to excessive pressure, which is safe and reliable. The BU-100-114 bypass oil filter can be used together with injection molding machines, die-casting machines, hydraulic machine tools, hydraulic stations and other hydraulic machinery and equipment.

BU-100-114 Bypass Oil Filter

4. Picture of BU-100-114 Bypass Oil Filter after use

The filter element of BU-100-114 bypass oil filter is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumption.

BU-100-114 Bypass Oil Filter

5. Company certificates

  • BU-100-114 Bypass Oil Filter

    (AAA-grade credit enterprise)
  • BU-100-114 Bypass Oil Filter

    (AAA-grade credit enterprise)

FAQ

Q: Can you design the equipment according to our size?

A: Yes, we can customize products according to customers' needs.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: Is OEM acceptable?

A: We can consider but we have requirements. The specific requirements are based on the actual situation.
