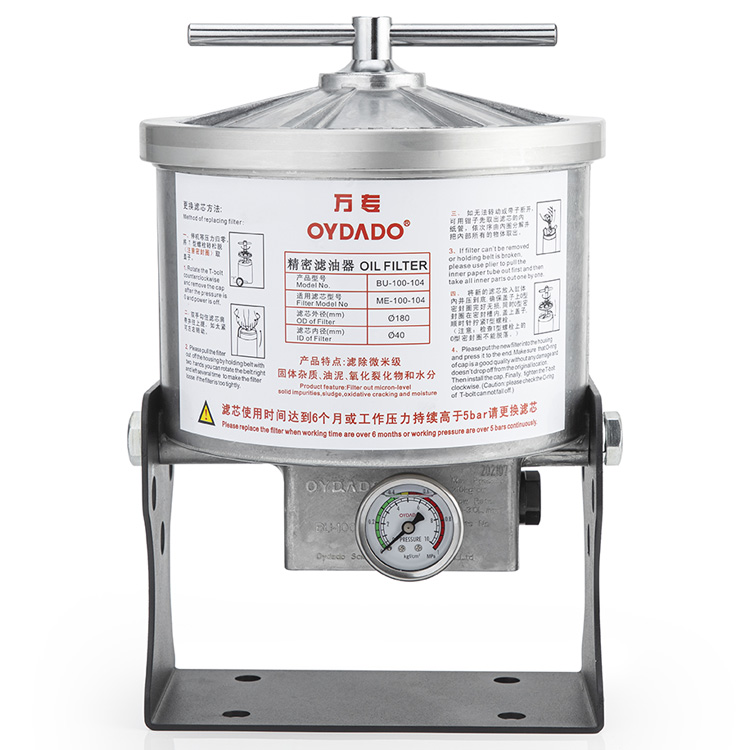

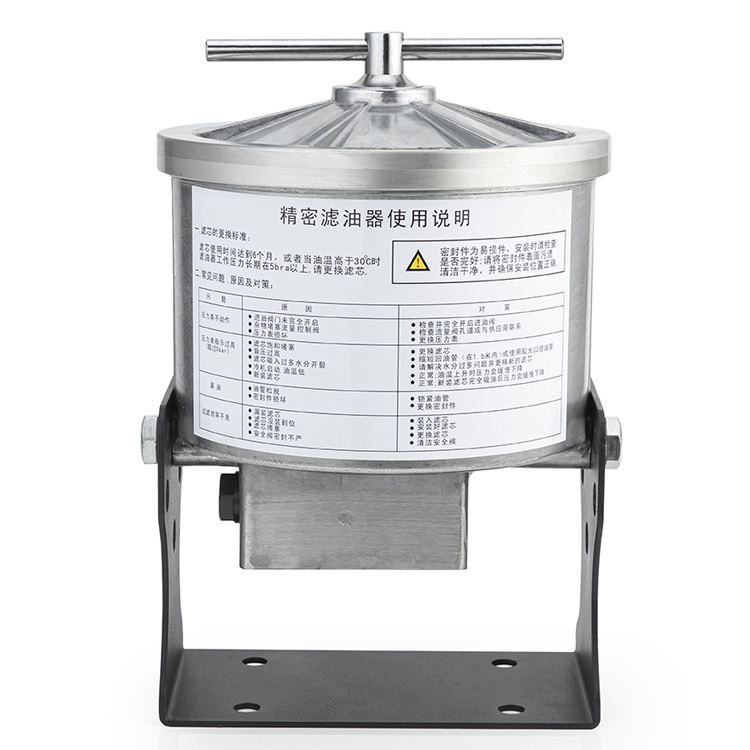

BU-100-104 Bypass Oil Filter

Professional BU-100-104 Bypass Oil Filter Made in China made from our factory. The BU-100-104 bypass oil filter is used in combination with the hydraulic system, and uses the pressure of the hydraulic system to divert a certain amount of oil from the hydraulic oil circuit, and then performs bypass precised filtration through the oil filter. The precised filtration of oil in a larger tank can be achieved by connecting multiple BU-100-104 bypass oil filters in parallel. The BU-100-104 bypass oil filter and the hydraulic system are operated at the same time to remove the oil contaminants generated by the hydraulic system in real time, improve the oil cleanliness level, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and maintain the hydraulic system in good working condition.

Product model: BU-100-104

Supporting filter model: ME-100-104

Flow rate: 3.0L/min

Filtering accuracy: μ level

The highest cleanliness grade: NAS5

Maximum water removal amount: about 0.96L

Maximum decontamination amount: about 1300g

Applicable pressure range: 0.6～21Mpa

Oil temperature range: 0～80℃

Oil viscosity range: 9～180cSt

Inlet and outlet diameter: RC1/4 (inlet)；RC3/8 (outlet)

Weight (kg): 6.6

Dimensions (mm): 230x206x320

Applicable fuel tank capacity: ≤ 400L

The BU-100-104 bypass oil filter can filter out oil oxides, sludge, moisture and micron solid particles. The built-in safety valve can avoid damage to the oil filter due to excessive pressure, which is safe and reliable. If the filter element saturation alarm function is selected, it will make an alarm automatically. BU-100-104 bypass oil filter can be used together with injection molding machines, die-casting machines, hydraulic machine tools, hydraulic stations and other hydraulic machinery and equipment.

The filter element of BU-100-104 Bypass Oil Filterr is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumption.

•

  （Guangdong Province Contract-abiding and Credit-worthy Enterprise ）

•

  （Shunde Equipment Manufacturing Strategic Cooperation Supplier）

A: Our company was founded in 2009, specializing in the production of precision oil filtering equipment.

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.

A: We can consider but we have requirements. The specific requirements are based on the actual situation.
