BL Bypass Oil Filter Machine
  • BL Bypass Oil Filter MachineBL Bypass Oil Filter Machine
  • BL Bypass Oil Filter MachineBL Bypass Oil Filter Machine
  • BL Bypass Oil Filter MachineBL Bypass Oil Filter Machine

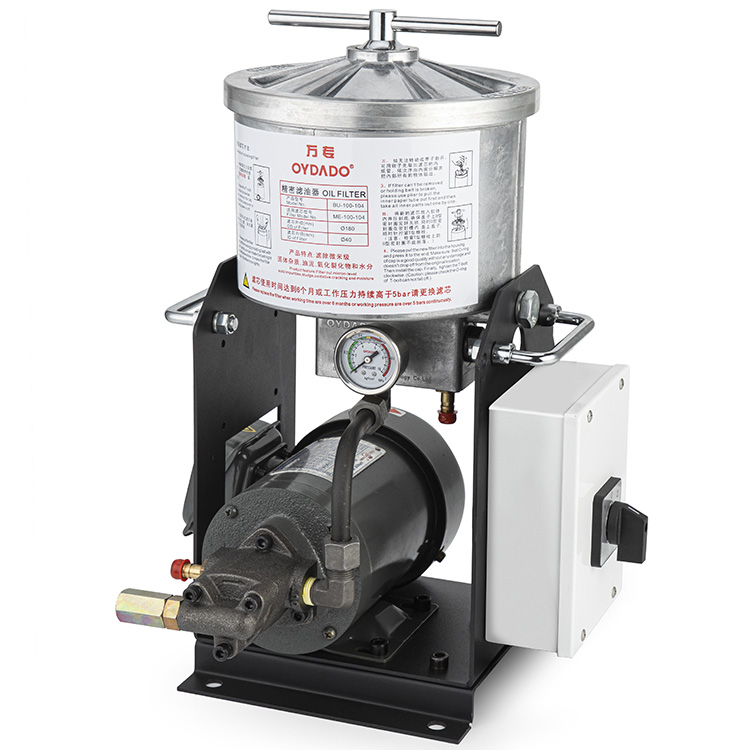

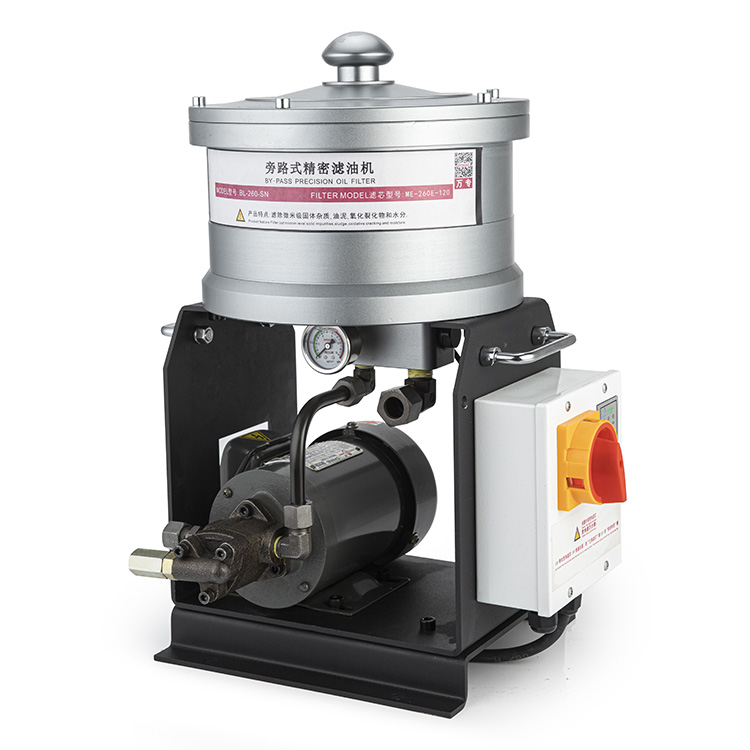

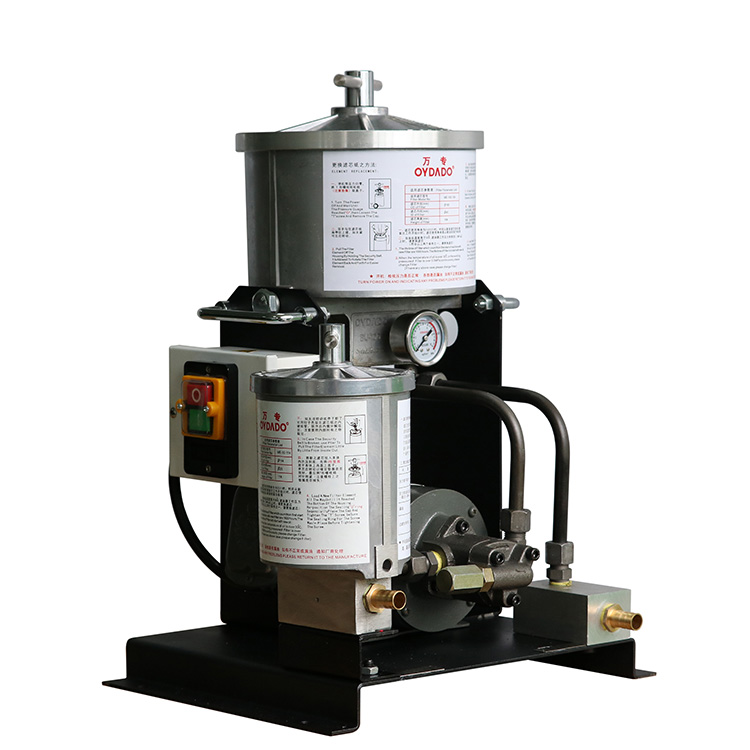

BL Bypass Oil Filter Machine

China Quality BL Bypass Oil Filter Machine Quotation. We specialize in the production of BL bypass oil filter machine. BL bypass oil filter machine is a small precised oil filter. It has its own power and it can be operated independently. It can filter micron-level pollutants, with high filtering accuracy and low maintenance cost. It is mainly used for the precised filtration of water glycol oil.

Send Inquiry

Product Description


China Quality BL Bypass Oil Filter Machine Quotation.

1. Product Introduction of BL bypass oil filter machine

BL bypass oil filter machine is mainly used for precised filtration of oil in large hydraulic equipment. It adopts bypass type online filtering method and it is installed on the machine to be used together with hydraulic equipment. The independent operation of BL precised bypass oil filter does not change the oil circuit of the main machine and the original working state. The BL bypass oil filter machine and the main machine operate synchronously to remove the oil contaminants generated by the machine in real time, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and keep the hydraulic system in good working condition. BL bypass oil filter machine can be used with injection molding machine, die casting machine, hydraulic machine tool, hydraulic station and other hydraulic mechanical equipment.


2. Technical parameters of BL bypass oil filter machine

Model BL-100 BL-100-SN BL-260-SN
Supporting filter model ME-100-114 ME-100-114和SN-32 ME-260E-120和SN-260
Filtering accuracy μ grade μ grade μ grade
Highest cleanliness grade NAS 5 NAS 5 NAS 5
Oil pump flow 4L/min 4L/min 6.9L/min
Maximum water removal amount (approximately) 0.96L 0.96L 2.8L
Maximum decontamination amount (approximately)) 1300g 2300g 3500g
Oil temperature range 0~80℃ 0~80℃ 0~80℃
Viscosity range 9~180cSt 9~180cSt 9~180cSt
Weight (kg) 18 23 30
Dimensions LxWxH(mm) 320x300x480 300x350x500 380x310x500
Rated power (KW) 0.35 0.35 0.35
Voltage 380V/4P 50Hz 380V/4P 50Hz 380V/4P 50Hz
Applicable fuel tank capacity ≤ 600L ≤ 800L ≤ 1500L

BL Bypass Oil Filter Machine

3. Product features of BL bypass oil filter machine

a. High filtering accuracy, the oil cleanliness grade after filtration is as high as NAS5

b. The magnetic filter element combined with wood pulp fiber is used to filter out neutral and polar pollutants at the same time.

c. It can filter out moisture, oil oxides, sludge and micron solid particles

d. The prompt of filter element saturation alarm is intelligent and convenient, and the maintenance is worry-free

e. Extend the service life of the oil and reduce the failure rate of the hydraulic system

BL Bypass Oil Filter Machine

4. Picture of BL Bypass Oil Filter Machine after use

The filter element of BL precised bypass oil filter is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumption.

BL Bypass Oil Filter Machine

5. Company certificates

  • BL Bypass Oil Filter Machine

    Member Enterprise of Shenzhen Machinery Industry Association
  • BL Bypass Oil Filter Machine

    Guangdong Province Contract-abiding and Credit-worthy Enterprise

FAQ

Q: Where is your factory?

A: Our factory is in Guangzhou, China.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: How can I become your agent?

A: As long as you are engaged in related business in the hydraulic industry with corresponding technical personnel, you can apply for an agency from us.
