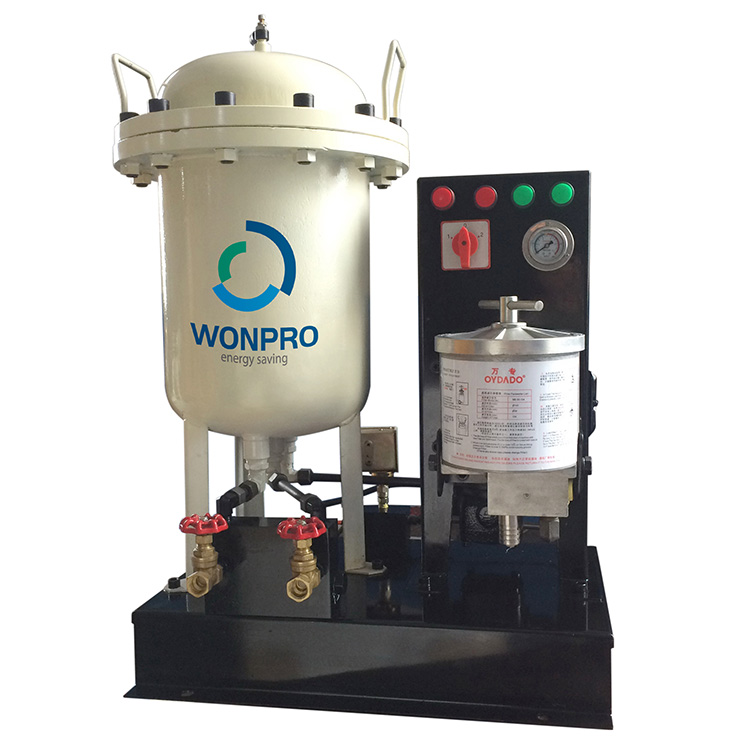

CT Water Glycol Oil Bypass Oil Filter Machine
  • CT Water Glycol Oil Bypass Oil Filter MachineCT Water Glycol Oil Bypass Oil Filter Machine

CT Water Glycol Oil Bypass Oil Filter Machine

Professional CT Water Glycol Oil Bypass Oil Filter Machine Made in China. We specialize in the production of CT water glycol oil bypass oil filter machine. CT water glycol oil bypass oil filter machine is a large-flow bypass oil filter. It has its own power and it can be operated independently. Featured by high filtering accuracy and large filtering area, it can filter micron-level pollutants. It is mainly used for precised filtration of water glycol oil.

Send Inquiry

Product Description


Professional CT Water Glycol Oil Bypass Oil Filter Machine Made in China.

1. Product Introduction of CT water glycol oil bypass oil filter machine

CT water glycol oil bypass oil filter machine is mainly used for precised filtration of oil in large hydraulic equipment. It adopts bypass type online filtering method and it is installed on the machine to be used together with hydraulic equipment. The independent operation of CT water glycol oil bypass oil filter machine does not change the oil circuit of the main machine and the original working state. The CT water glycol oil bypass oil filter machine and the main machine operate synchronously to remove the oil contaminants generated by the machine in real time, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and keep the hydraulic system in good working condition. CT water glycol oil bypass oil filter machine is widely used in hydraulic equipment such as plastic machinery, casting machinery, quenching equipment, finishing mill, thin oil station, servo hydraulic press and large hydraulic station.


2. Technical parameters of CT water glycol oil bypass oil filter machine

Model CT-302T-SS CT-402T-SS CT-502T-SS
Supporting filter model WG-200T WG-200T WG-200T
Filtering accuracy μ grade μ grade μ grade
Highest cleanliness grade NAS 6 NAS 6 NAS 6
Oil pump flow 13.0L/min 18.0L/min 24.0L/min
Maximum water removal amount (approximately) / / /
Maximum decontamination amount (approximately) 9Kg 12Kg 15Kg
Oil temperature range 0~80℃ 0~80℃ 0~80℃
Viscosity range 9~180cSt 9~180cSt 9~180cSt
Weight (kg) 110 130 150
Dimensions LxWxH(mm) 500x350x700 500x350x900 500x350x1000
Rated power (KW) 1.5 1.5 1.5
Voltage Three-phase 380V Three-phase 380V Three-phase 380V
Applicable fuel tank capacity ≤ 2000L ≤3000L ≤4000L

CT Water Glycol Oil Bypass Oil Filter Machine

3. Product features of CT water glycol oil bypass oil filter machine

a. Large flow, large filtering area, high dirt holding capacity

b. High filtering accuracy, the oil cleanliness level after filtration can be as high as NAS6

c. Magnetic and polymer material fiber combined filter element is adopted to filter out neutral and polar pollution particles at the same time

d. It can filter out oil oxides, sludge and micron solid particles

e. The prompt of filter element saturation alarm is intelligent and convenient, and the maintenance is worry-free

f. Extend the service life of the oil and reduce the failure rate of the hydraulic system

CT Water Glycol Oil Bypass Oil Filter Machine

4. Company certificates

  • AAA-grade credit enterprise
  • CT Water Glycol Oil Bypass Oil Filter Machine

    Guangdong Province Contract-abiding and Credit-worthy Enterprise

FAQ

Q: How can I become your agent?

A: As long as you are engaged in related business in the hydraulic industry with corresponding technical personnel, you can apply for an agency from us.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: How long is the production cycle?

A: Generally we have stocks. If there is no stock, the production cycle will take about two working weeks.
