Home > Products > Oil Filter Machine > Precision Oil Filter Machine > ES Corrosion-resistant Precised Oil Filter Machine

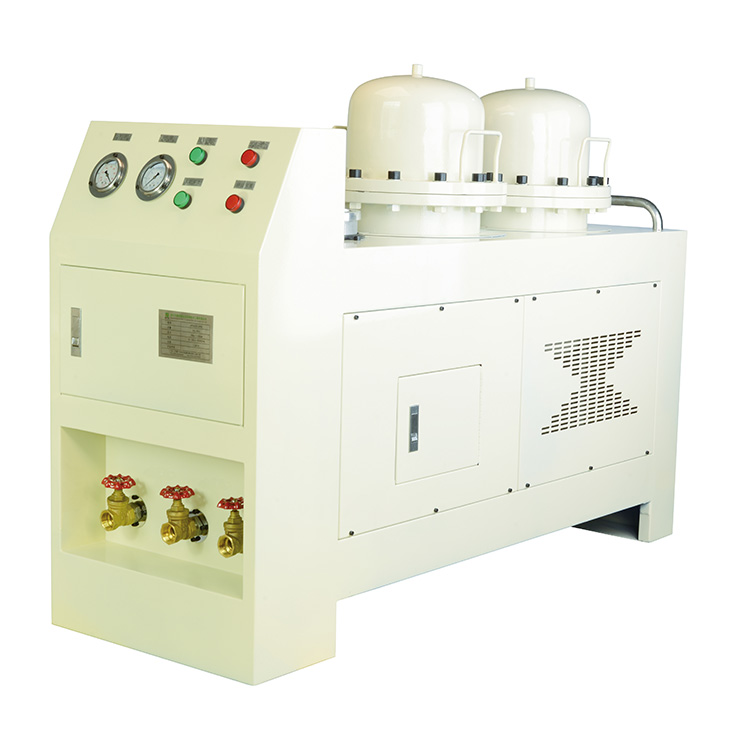

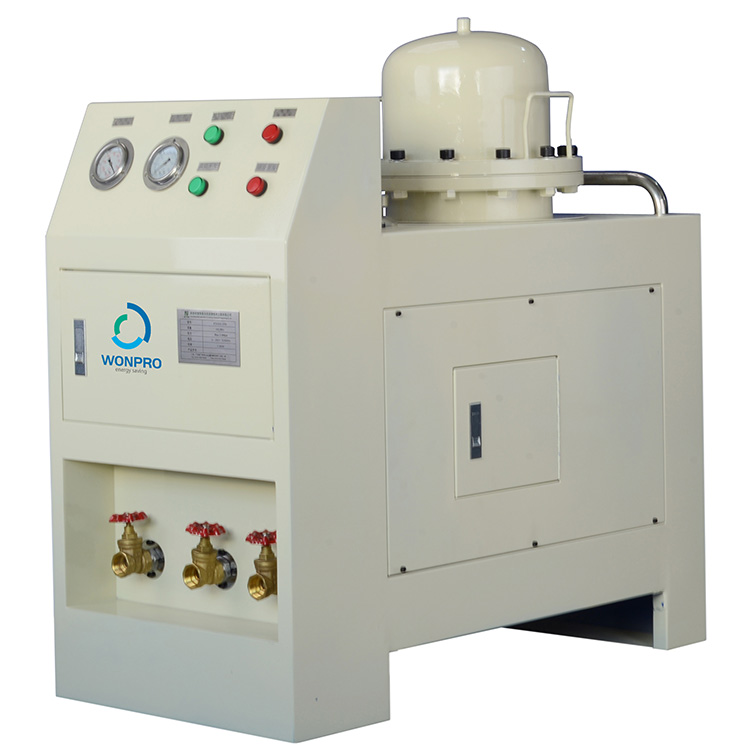

ES Corrosion-resistant Precised Oil Filter Machine
  • ES Corrosion-resistant Precised Oil Filter MachineES Corrosion-resistant Precised Oil Filter Machine
  • ES Corrosion-resistant Precised Oil Filter MachineES Corrosion-resistant Precised Oil Filter Machine

ES Corrosion-resistant Precised Oil Filter Machine

Professional ES Corrosion-resistant Precised Oil Filter Machine Manufacturers. We specialize in the production of ES corrosion-resistant precised oil filter machine. ES corrosion-resistant precised oil filter machine is an oil filter with large flow, high filtering accuracy and large dirt holding capacity, corrosion resistance and wide application range.

Send Inquiry

Product Description


Professional ES Corrosion-resistant Precised Oil Filter Machine Manufacturers.

1. Product Introduction of ES corrosion-resistant precised oil filter machine

ES corrosion-resistant precised oil filter machine is mainly used for precised filtration of oil in large hydraulic equipment, with the way of bypass online filtration. A de-bubble unit can be selected as required. The ES corrosion-resistant precised oil filter machine and the main machine operate synchronously online to remove the contaminants generated by the machine in real time, extend the service life of the oil, and keep the hydraulic system in good working condition, greatly reducing the failure rate of the hydraulic system. ES corrosion-resistant precised oil filter machine is suitable for precised filtration of weakly corrosive oils.


2. Technical parameters of ES corrosion-resistant precised oil filter machine

Model ES-1R4200T-SS ES-2R4200T-SS ES-4R4200T-SS
Supporting filter model WG-200T WG-200T WG-200T
Filtering accuracy μ grade μ grade μ grade
Highest cleanliness grade NAS 6 NAS 6 NAS 6
Oil pump flow 18.0L/min 30.0L/min 50L/min
Single filter element
Maximum decontamination amount (approximately)
16Kg 25Kg 50Kg
Oil temperature range 0~80℃ 0~80℃ 0~80℃
Viscosity range 9~180cSt 9~180cSt 9~180cSt
Weight (kg) 150 260 360
Dimensions LxWxH(mm) 980x510x990 1380x510x990 1500x1000x990
Rated power (KW) 0.75 1.5 3
Voltage Three-phase 380V Three-phase 380V Three-phase 380V
Applicable fuel tank capacity ≤2300L ≤4000L ≤8000L

ES Corrosion-resistant Precised Oil Filter Machine

3. Product features of ES corrosion-resistant precised oil filter machine

a. Large flow, large filtering area, high dirt holding capacity

b. High filtering accuracy, the oil cleanliness level after filtration is as high as NAS6

c. It can filter out oil oxides, sludge and micron solid particles

d. The de-bubble unit (optional) can continuously remove the bubbles in the oil, and the de-bubble rate is 100%

c. Extend the service life of the oil and reduce the failure rate of the oil pressure system

ES Corrosion-resistant Precised Oil Filter Machine

4. Company certificates

  • ES Corrosion-resistant Precised Oil Filter Machine

    (Shunde Equipment Manufacturing Strategic Cooperation Supplier)
  • ES Corrosion-resistant Precised Oil Filter Machine

    (Guangdong Province Contract-abiding and Credit-keeping Enterprise)

FAQ

Q: Is OEM acceptable?

A: We can consider but we have requirements. The specific requirements are based on the actual situation.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: How many years has your company made this kind of equipment?

A: Our company was established in 2009, specializing in the production of precised oil filtering equipment.
