ES Precision Oil Filter Machine
  • ES Precision Oil Filter MachineES Precision Oil Filter Machine
  • ES Precision Oil Filter MachineES Precision Oil Filter Machine

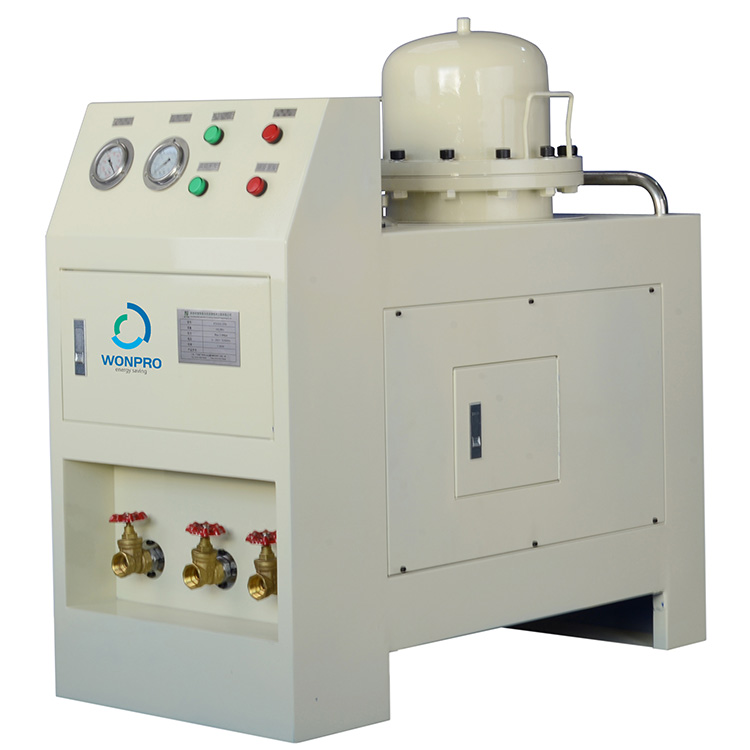

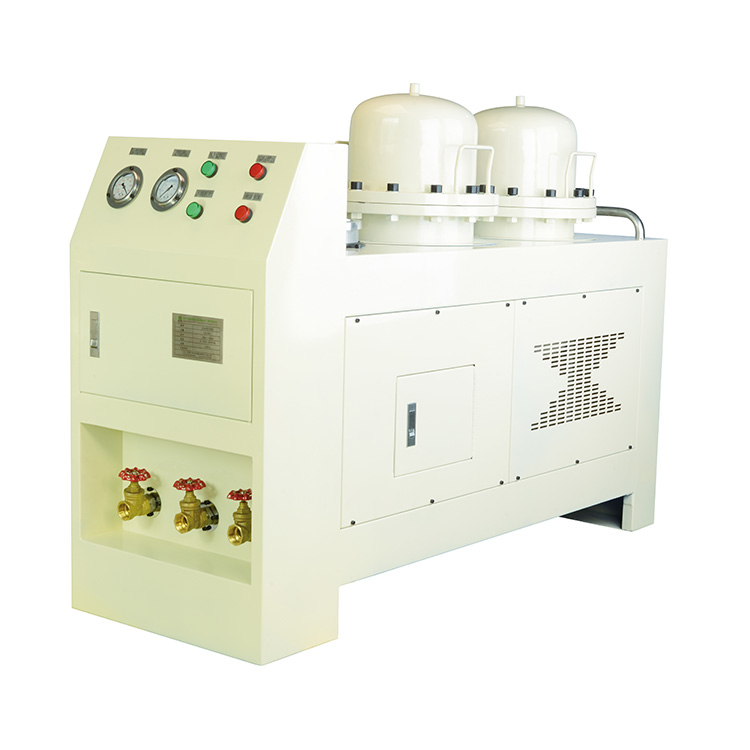

ES Precision Oil Filter Machine

Wholesale ES Precision Oil Filter Machine Made in China. We specialize in the production of ES precision oil filter machine. ES precision oil filter machine is an oil filter with large flow, high filtering precision and large dirt holding capacity. It is economical and practical, and it has a wide range of applications.

Send Inquiry

Product Description


Wholesale ES Precision Oil Filter Machine Made in China.

1. Product Introduction of ES precision oil filter machine

ES precision oil filter machine is mainly used in the precised filtration of oil in large hydraulic equipment, with the way of bypass online filtration. A de-bubble unit can be selected as required. The ES precision oil filter machine and the main machine operate online synchronously to remove the pollutants generated by the machine in real time, extend the service life of the oil, and keep the hydraulic system in good working condition, greatly reducing the failure rate of the hydraulic system. ES precision oil filter machine is suitable for precised filtration of gear oil, heat transfer oil, grinding oil, hydraulic oil, lubricating oil, quenching oil, metal cutting oil, water glycol oil and other oils. It is widely used in die casting machinery, quenching equipment, finishing mills, thin oil stations, servo hydraulic presses and medium and large hydraulic stations.


2. Technical parameters of ES precision oil filter machine

Model ES-1R4200T-CS ES-2R4200T-CS ES-4R4200T-CS
Supporting filter model ME-200T ME-200T ME-200T
Filtering accuracy μ grade μ grade μ grade
Highest cleanliness grade NAS 5 NAS 5 NAS 5
Oil pump flow 18.0L/min 30.0L/min 50L/min
Single filter element
Maximum water removal amount (approximately)
7.0L 11.0L 16.0L
Single filter element
Maximum decontamination amount (approximately)
16Kg 25Kg 50Kg
Oil temperature range 0~80℃ 0~80℃ 0~80℃
Viscosity range 9~180cSt 9~180cSt 9~180cSt
Weight (kg) 150 260 360
Dimensions LxWxH(mm) 980x510x990 1380x510x990 1500x1000x990
Rated power (KW) 0.75 1.5 3
Voltage Three-phase 380V Three-phase 380V Three-phase 380V
Applicable fuel tank capacity ≤2300L ≤4000L ≤8000L

ES Precision Oil Filter Machine

3. Product features of ES precision oil filter machine

a. Large flow, large filtering area, high dirt holding capacity

b. High filtering accuracy, the oil cleanliness level after filtration can be as high as NAS5

c. It can filter out moisture, oil oxides, sludge and micron solid particles

d. The de-bubble unit (optional) can continuously remove the bubbles in the oil, and the de-bubble rate is 100%

c. Extend the service life of the oil and reduce the failure rate of the oil pressure system

ES Precision Oil Filter Machine

4. Company certificates

  • ES Precision Oil Filter Machine

    (Member Enterprise of Shenzhen Machinery Industry Association)
  • ES Precision Oil Filter Machine

    (Guangdong Province Contract-abiding and Credit-keeping Enterprise)

FAQ

Q: Where is your factory?

A: Our factory is in Guangzhou, China.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: How can I become your agent?

A: As long as you are engaged in related business in the hydraulic industry with corresponding technical personnel, you can apply for an agency from us.
