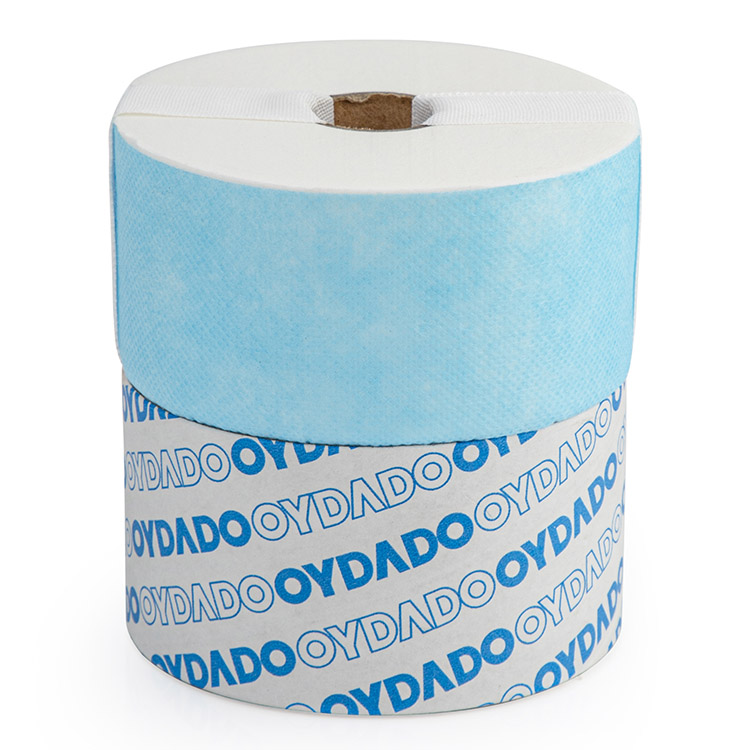

ME-32 Precised Filter Element
  • ME-32 Precised Filter ElementME-32 Precised Filter Element

ME-32 Precised Filter Element

Advanced ME-32 Precised Filter Element Quotation, with an annual sales volume of more than 100,000. ME-32 precised filter element can filter micron-level pollutants, which is featured by high filtering accuracy and low cost.

Send Inquiry

Product Description

1. Product Introduction of ME-32 precised filter element

Advanced ME-32 Precised Filter Element Quotation. ME-32 precised filter element is processed by filter material made of wood pulp, cellulose and additives. Segmented rolling manufacturing process is adopted to press the filter material of the planar structure into a cylindrical filter element with different density gradients. The filter element has the following functions, such as absorbing pollutants by grades, adsorbing pollutants, and absorbing and locking moisture.

2. Technical parameters of ME-32 precised filter element

Model number: ME-32

Outer diameter (mm): Φ104

Inner diameter (mm): Φ25

Height(mm): 114

Maximum impurity absorption (approximately): 200 g

Maximum water absorption (approximately): 460 mL

Temperature range in operation: 0~80℃

Viscosity range of the used oil: 9~180cSt

Supporting bypass oil filter model: BU-32

3. Product features of ME-32 precised filter element

a. High filtering accuracy, the oil cleanliness level after filtration is as high as NAS3

b. Large dirt holding capacity, with the three functions of adsorption, subsumption and water absorption at the same time

c. It can filter out moisture, oil oxides, sludge and micron solid particles

ME-32 Precised Filter Element

4. Picture of ME-32 precised filter element after use

ME-32 precised filter element is suitable for precised filtration of hydraulic oil and other industrial oils with a viscosity ranging from 9 to 180cSt. It has excellent filtering effects for oils of different pollution levels.

ME-32 Precised Filter Element

5. Company certificates

  • ME-32 Precised Filter Element

    (AAA-grade credit enterprise)
  • ME-32 Precised Filter Element

    (AAA-grade credit enterprise)

FAQ

Q: How many years has your company made this kind of equipment?

A: Our company was founded in 2009, specializing in the production of precision oil filtering equipment.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: Is OEM acceptable?

A: We can consider but we have requirements. The specific requirements are based on the actual situation.
