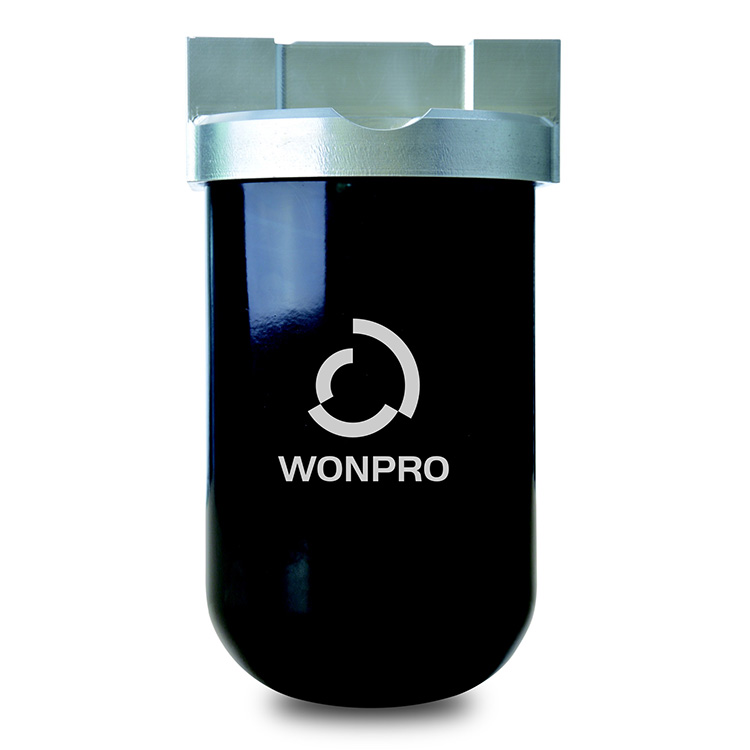

CS510 Oil Filter
  • CS510 Oil FilterCS510 Oil Filter

CS510 Oil Filter

Customized CS510 Oil Filter Manufacturers. CS510 Oil filter is featured by high filtering accuracy, small volume and convenient installation. It is mainly used for precised filtration of engine oil.

Send Inquiry

Product Description

1. Product Introduction of CS510 Oil filter

Customized CS510 Oil Filter Manufacturers. The CS510 Oil filter is used in combination with engine, and uses the pressure of the oil line, a certain proportion of the oil is diverted from the main oil line and filters by the CS510 Oil filter and returns to the oil tank. The CS510 Oil filter and the engine operate at the same time to remove the oil contaminants generated by the engine in real time, improve the oil cleanliness level, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and maintain the hydraulic system in good working condition.

2. Technical parameters of CS510 Oil filter

Product model: CS510

Supporting filter model: SE105-210

Working pressure: ≤10kgf/cm²

Working temperature: <150℃

Inlet and outlet diameter: RC3/8

Applicable fuel tank capacity: 6L~13L

Weight(kg): 3

Dimensions (mm): Φ115 x 270

CS510 Oil Filter

3. Product features of CS510 Oil filter

The CS510 Oil filter can filter out moisture, oil oxides, sludge and micron solid particles. The highest cleanliness grade: NAS5 level. It’s is safe and reliable. The built-in safety valve can avoid damage to the oil filter due to excessive pressure. The CS510 Oil filter is used in combination with engine.

CS510 Oil Filter

4. Product features of CS310 element of Oil filter

The filter element of CS510 Oil filter is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumpt.

NSA1638 Cleanliness level table

CS510 Oil Filter

5. Company certificates

  • CS510 Oil Filter

    (AAA-credit enterprise )
  • CS510 Oil Filter

    (Guangdong Province Contract-abiding and Credit-worthy Enterprise)


Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of precision oil filters.

Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.

Q: How long is the production cycle?

A: Generally we have stocks. If there is no stock, the production cycle will take about two working weeks.
