CS530 Oil Filter
  • CS530 Oil FilterCS530 Oil Filter

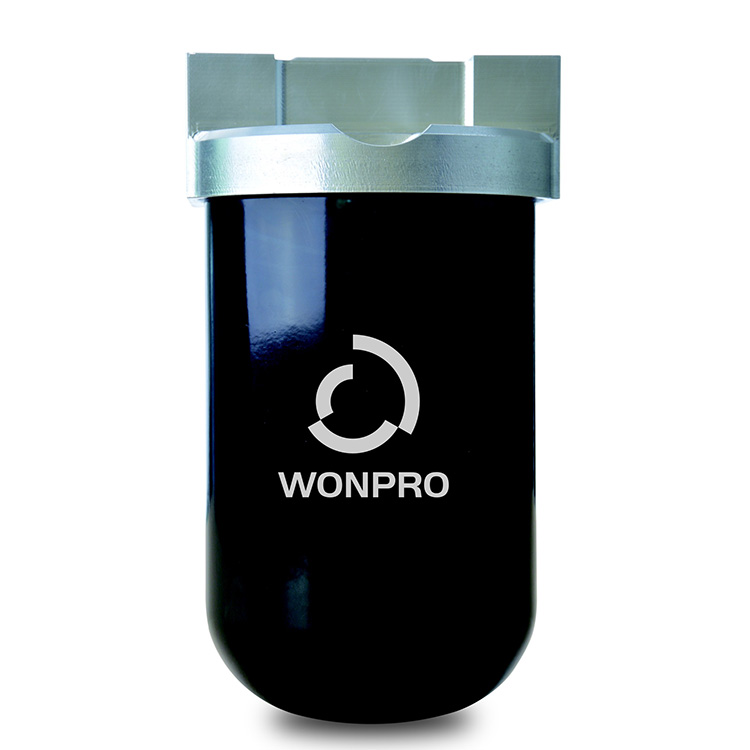

CS530 Oil Filter

Professional CS530 Oil Filter Made in China. CS530 Oil filter is featured by high filtering accuracy, small volume and convenient installation. It is mainly used for precised filtration of engine oil.

Send Inquiry

Product Description

1. Product Introduction of CS530 Oil filter

Professional CS530 Oil Filter Made in China. The CS530 Oil filter is used in combination with engine, and uses the pressure of the oil line, a certain proportion of the oil is diverted from the main oil line and filters by the CS530 Oil filter and returns to the oil tank. The CS530 Oil filter and the engine operate at the same time to remove the oil contaminants generated by the engine in real time, improve the oil cleanliness level, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and maintain the hydraulic system in good working condition.

2. Technical parameters of CS530 Oil filter

roduct model: CS530

Supporting filter model: SE133-300

Working pressure: ≤10kgf/cm²

Working temperature: <150℃

Inlet and outlet diameter: RC3/8

Applicable fuel tank capacity: 13L~26L

Weight(kg): 5

Dimensions (mm): Φ143 x 370

CS530 Oil Filter

3. Product features of CS530 Oil filter

The CS530 Oil filter can filter out moisture, oil oxides, sludge and micron solid particles. The highest cleanliness grade: NAS5 level. It’s is safe and reliable. The built-in safety valve can avoid damage to the oil filter due to excessive pressure. The CS530 Oil filter is used in combination with engine.

CS530 Oil Filter

4. Product features of CS310 element of Oil filter

The filter element of CS530 Oil filter is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumption

NSA1638 Cleanliness level table

CS530 Oil Filter

5. Company certificates

  • CS530 Oil Filter

    (Member enterprise of Shenzhen Machinery Industry Association)
  • CS530 Oil Filter

    (Guangdong Province Contract-abiding and Credit-worthy Enterprise)

FAQ

Q: Where is your factory?

A: Our factory is in Guangzhou, China.


Q: Can you send your staff to our factory to install equipment for us?

A: For customers of foreign countries, we do not provide on-site installation services for the time being. Product installation is relatively simple. We will provide simple and easy-to-understand installation instructions. If necessary, we can provide related installation videos before installation.


Q: How can I be your agent?

A: As long as the company is engaged in relevant businesses in the hydraulic industry and has corresponding technicians, it can apply for agency with us.
